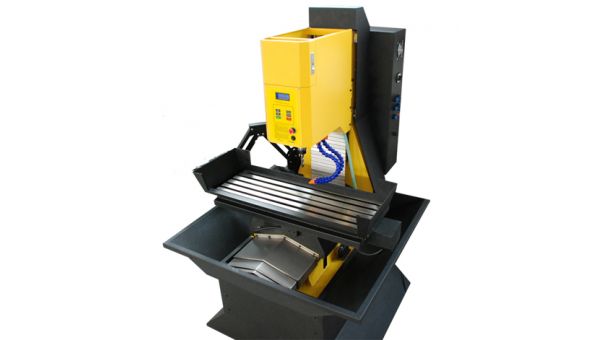

cnc machine M800/260

This is small industrial, training and education cnc mill. High-speed, high accuracy, high spindle torque, large work envelope and low cost is what the machining industry has been looking for. We feel that Syil has met this demand. The X7 series addresses this industry wide dilemma and allows for a new generation of machining businesses to produce low cost high-precision parts on demand. Table size 800x260mm T slot diamensions: 5T/16mm/50mm Table load: 150kgs X axis travel: 420mm Y axis travel: 270mm Z axis travel: 410mm Spindle speed: 6000rpm Spindle table: BT30/R8 Position: 0.016 Repeatability: 0.008 X axis torque: 4N.M Y axis torque 5N.M. Z axis torque 6N.M. X axis ball screw(D/P): 20/5mm Y axis ball screw(D/P): 20/5mm Z axis ball screw(D/P): 25/5mm X linear guaid way width: 20mm Y linear guaid way width: 20mm Z linear guaid way width: 25mm
