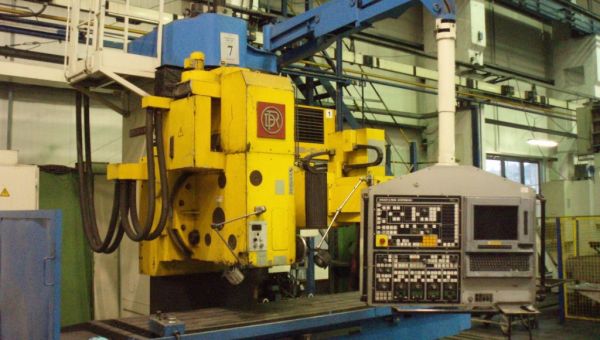

DROOP & REIN CNC Heavy Duty Bed-Type Milling Machine

Producer: DROOP&REIN Type: FSM 803 DA 30 KcN Year of Production: 1992 TECHNICAL DATA: -––––––––––––––- Clamping table: Workpiece clamping area ... ... ... 2000 x 800 mm Total length of the table ... ... ... 3605 mm Table width ... ... ... 800 mm 5 T-grooves - from the middle as a leveling ... ... ... 22 mm H7 - other T-slots ... ... ... 22 mm M11 Spacing T-slots ... ... ... 160 mm Max. load on the table ... ... ... ... 6000 kg Shifts: X-axis (longitudinal clamping table) ... ... ... 1600 mm Y-axis (transverse clamping table) ... ... ... 800 mm Z-axis (vertical milling unit) ... ... ... 700 mm Copy range ... ... ... 1600 x 800 mm Mounting height under spindle vertical ... ... ... 200 to 900 mm The distance between the column and spindle ... ... ... 950 mm Spindle taper ... ... ... Ø 50/130 mm SK Spindle speeds 20-4000 ... ... ... rpm Milling head swivel ... ... ... + / - 45 ° Displacements in all three axes ... ... ... 5-3000 mm / min Spindle drive ... ... ... 34 kW The total electrical charging ... ... ... 55 kW - 380 V - 50 Hz The total weight of the machine ... ... ... 26000 kg CNC system ... ... ... DROOP & REIN - SYSTEM KC FIDIA Separate hydraulic unit and separate cabinet.
