Details
Date:
12/06/2013
Country:
Germany
Delivery terms:
1-2 months
Condition:
Excellent
Price:
by request
Description:

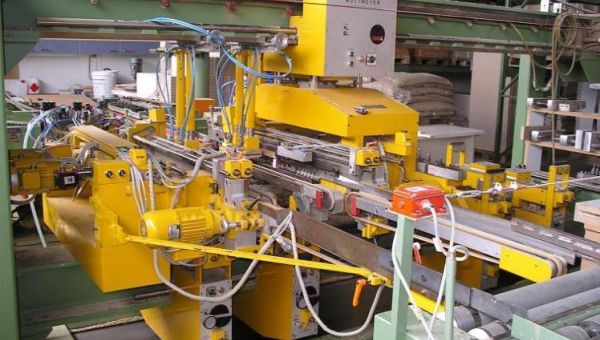

stock-no. 5007 Drilling automat Nottmeyer type: Komet Super SP/N/SP working length 2500 mm right and left side: 1 drilling beam with 2 drilling heads each with 9 drills in 32 mm distance, each drilling motor 1,1 kW 4 drilling beams from bottom: 1 drilling beam with 2 drilling devices, each with 9 drills in 32 mm distance 1 drilling beam with 2 angle drilling heads 2 drilling beams without drilling heads, with 1 pallet drilling heads dust transport belt from bottom continuous working, with transfer with mechanic digital displays Dowel driving automat Koch type: DL 80 input power 3 kW per side 4 dowel driving tools for dowel diameter 8 mm with mechanic digital displays new glue nozzles Turning station from lengthwise to crosswise Transport roller track with turning cone Homag type: TD 01-30/08 overall size: W 3130 mm x L 2300 mm height adjustable 740 – 1000 mm transport roller track Homag type: TD 01-30/08 overall size: W 950 mm x L 3300 mm driven price on demand
