Details
Date:
12/06/2013
Country:
Germany
Delivery terms:
1-2 months
Condition:
Excellent
Price:
by request

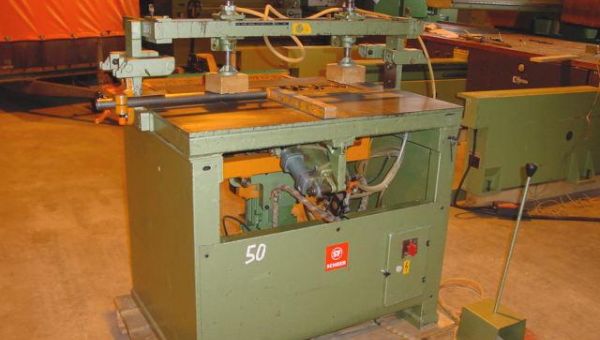

Multi spindle drilling machine Scheer DB 5
Description:
stock-no. 4035 Multi spindle drilling machine Scheer, type: DB 5, year of manufacture: 1980, drilling beam with 21 drills in 32 mm distance, tool holder M 10, external screw thread, spindle distance min. 32 mm, max. 640 mm, drilling beam tiltable 90°, drills horizontal and vertical from bottom, tilting of the drilling beam manual with pneumatic support, bridge opening 1056 mm, height adjustment 80 mm, drilling depth 80 mm, drilling device: type BM 610, 220/380 V, 2,2kW, 2 pneumatic clamping cylinder, weight: 300 kg - price on demand
