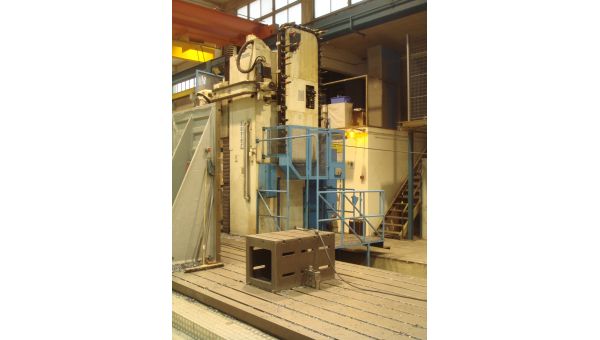

BED TYPE MILLING MACHINE ZAYER KCU 15000

BED TYPE MILLING MACHINE ZAYER KCU 15000 Year of manufacture: 1991 Feed motor: SIEMENS SIMODRIVE 611, new installed 2007 Spindle motor: SIEMENS Control: Heidenhain 415 Electricity supply: 400V 3Phases 50 Hz Power input: 78,1 kVA Technical Data: Travels Table-area: 15000 x 2500 x ? mm Number / width / distance of T-slots: 7 / 28 / 200 mm Travel x-axis: 15000 mm Travel y-axis: 3028 mm (by turning head 180 dgr 3528 mm can be reached) Travel z-axis: 1250 mm Head Huron type 2-axis CNC controlled Hydraulically locked each axis Huron part 45 dgr plane, 2 x 180 dgr (horiz. and vert. position on spindle) Progr M87,M88 Vertical plane, rotation each 5 dgr Spindle taper: ISO 50 Speeds Rpm-range: 20 - 1800 rpm Cutting feedrate X/Y/Z: 6 - 5000 mm/min Rapid feedrate X/Y/Z: 10000 - 15000 mm/min Spindle motor: 34 kW Spindle speeds / min. infin. Serie I : 20-176 rpm Serie II : 176-450 rpm Serie III : 451-655 rpm Serie IV : 655-1800 rpm Positioning accuracy: +/- 0,015/4000 mm Repeat accuracy: +/- 0,01 mm Automatic Tool Changer capac. for 60 tools (No tool holders included) Coolant tank: 1000 l Total height of machine from bottom of pit to top of column 5460 mm Total height of machine from floor plates to top of column 4060 mm Condition of the miller is excellent and for use in production until April 23. The equipment is serviced every year and wear parts are replaced as needed. No tooling or tool holder are included. Spareparts are included. Price on request
