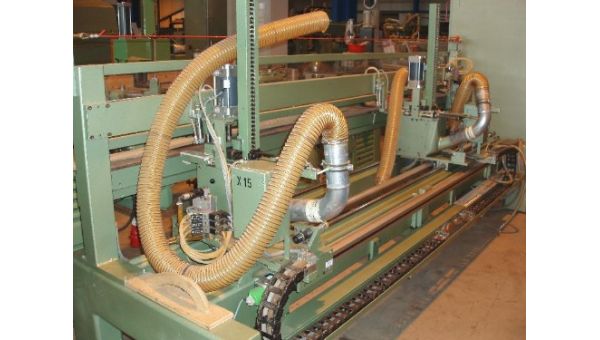

Automatic Drilling+pressing-in machine Priess u. Horstmann Type: BAT-II-CNC

Description:

stock-no. 4133 Automatic Drilling and pressing-in machine Priess u. Horstmann, Type: BAT-II-CNC, built: 1991, length of the workpiece 300 – 2500 mm, width of the workpiece 100 – 600 mm, height of the workpiece 15 – 30 mm, 2 drilling devices each with 3 drills in 32 mm devision, with magazin for hinge bands, with screen control, with adjustment by screen, CNC-control B+R, input power 8 kW, pressure air 6 – 7 bar, air suction min. 32 m/sec., air need 20 cbm/min., 2 connections to a filter plant, daimeter 80 mm weight: 2000 kg for cup hinges, mounting plates, joining and fastening elements, handles, vertic
