Details

Date:

19/05/2013

Brand:

titan machine

Model:

TL250V/550

Country:

---

Delivery terms:

1-2 months

Condition:

Excellent

Price:

by request

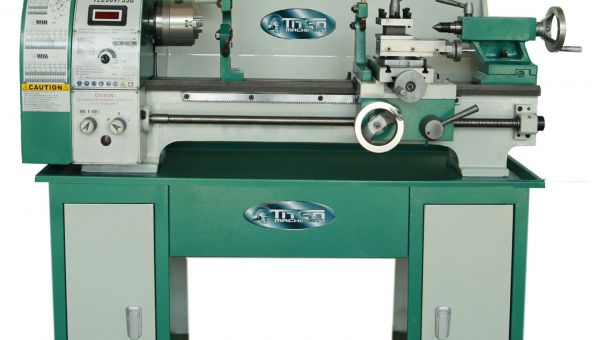

bench lathe TL250V/550

Description:

Distance between centers 6000mm Swing over bed 250mm Swing over cross slide 145mm Width of bed 135mm Taper of spindle bore Cam lock D1-4 / MT4 Spindle bore 26mm Number of spindle speeds Variable Range of spindle speeds 50~2500rpm Range of longitudinal feeds 0.07-0.20mm/r Range of inch threads 8-56T.P.I Range of metric threads 0.4-3.5mm Top Slide travel 50mm Cross slide travel 115mm Tailstock quill travel 70mm Taper of tailstock quill MT3 Motor 750W
