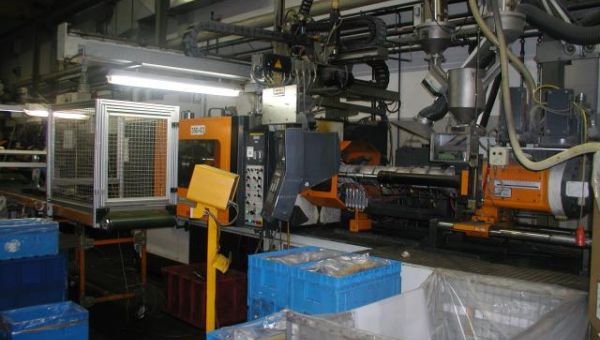

Windsor W 350 - 1940

Manufacturer:Windsor Type of machine:W 350 - 1940 Year:1991 Delivery time:Immediately Terms of Delivery:EX - Works Location:Eschweiler - Germany Controlversion:WMT Screen text:German Price:on request Technical details Clamping unit Clamping force:3500 kN Mould opening force, max.:230 kN Size of mould platens (h x v):1020 mm x 1020 mm Distance between tie bars (h x v):710 mm x 710 mm Mould opening stroke:1000 mm Mould height min.:300 mm Max daylight:1300 mm Hydraulic ejector - stroke:200 mm Ejector force forward/backward:95 kN Injection unit Screw diameter:70 mm Ls/D ratio:20 Injection pressure:1800 bar Stroke volume:1070 ccm Shot weight, PS:915 g Injection stroke:280 mm Screw speed:206 1/min Plasticising rate max.:497 g/s Nozzle pressure:115 kN Electric and Hydraulic Equipment Nominal capacity of pump motor:45 kW Installed heating capacity:24 kW Adjustable barrel heating zones:6 Reservoir capacity:1500 ltr. Dimensions und weights Dimensions of the machine ca.:9,15 m x 2,30 m x 2,44 m Total machine weight:20000 kg Accessories - anti - vibration pads - hopper - 2 x 6-zones Water flow - Suhling Robot system Additional information - Robot interface - 3 x core pulls - 2 x Air valves - shut off nozzle
