Details
Date:
09/06/2013
Brand:
Peco Messer Griesheim
Model:
3M35L4
Country:
Germany
Delivery terms:
1-2 months
Condition:
Excellent
Price:
€2,200.00
Top Offers

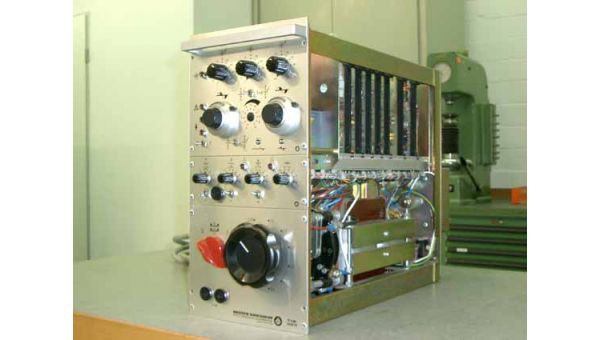

Weld controller Peco Messer Griesheim type 3M35L4
Description:
Thyristor phase angle control weld controller AC type 3M35L4 for micro resistance welding machines with pneumatic operated welding heads, 15 KVA effective power at 50% duty ratio; secondary voltage from 0-4V by switching 11 steps, double pulse, 5 time air controller; water cooled with temperature controlled magnetic valve; housing HxWxD 400x215x470 mm, connection 2x400V AC, 2x50AT; optional with weld transformer type TR3/1 15KVA, 400V/4V, water cooled; photos are made from the general revised controller
