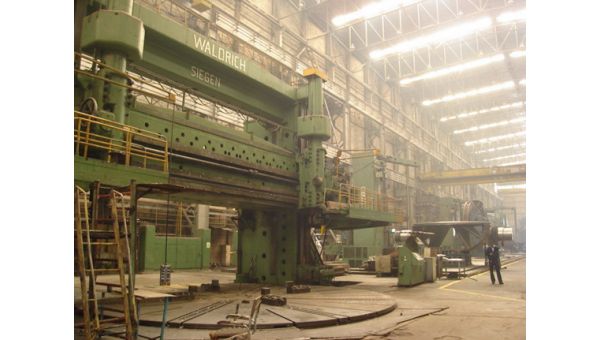

Vertical Lathe WALDRICH SIEGEN

Main technical data: Table diameter: 8500 mm, Max. workpiece diameter: 10200 mm, Max. workpiece height: 4500 mm, Max. workpiece weight on table: 200 ton, Main motor power: 170 kW, Hydraulic pumps power: 30 kW, Machine weight: approx. 600 ton. History: -this type of the vertical lathes is designed in 1960's, -this one was built in 1970's years, -it was as disassembled parts during many years in the Waldrich factory, -start date to work at new place in year of 2000! -the machine was revised in year of 2000 when assembled at the new place, General condition: -in excellent condition, not much used, complete and under power at the plant! -working rate of the machine is approx. 20%, guidways and gears in perfect condition, -there is not available a complete set of technical documentation, Equipped: -(2) Vertical ram tool supports, -(1) Side ram tool support, -Hydrostatic table, -PLC for control of the machine, -All of mechanical and hydraulic parts are original from Germany.
