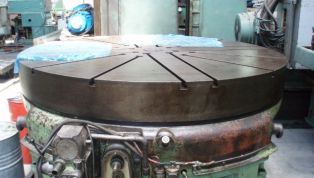

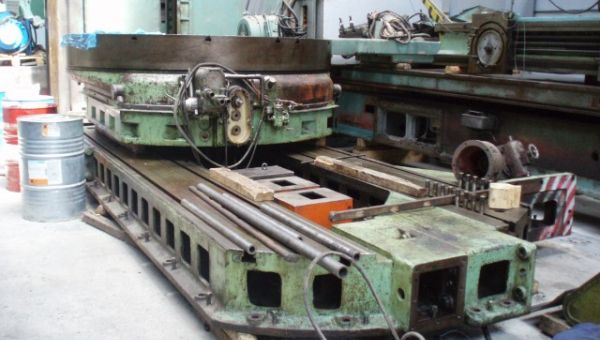

VTL 8920 Charles Berthiez 2800 x 6000

VTL 8920 Charles Berthiez 2800 x 6000(used) Producer: Charles Berthiez Type: 8920 Place: Czech Price: 138.000,- EUR (incl.loading on your truck) Payment conditions: 100% before delivery Delivery terms: EXW Czech (according to Incoterms 2000) Date of delivery: immediately -–––----------- TECHNICAL DATA: ––––----------- clamping plate diameter: 2800 mm maximum machining diameter: 6000 mm maximum diameter of pieces that can be demanding up to centre and that by means of left slide: 4200 mm maximum discharge heigth under arm: 2000 mm gears clamping plates: 18 revolutions per minute: 1 - 1,25 - 1,61 – 2 - 2,5 - 3,22 - 4,16 - 5,19 - 6,70 - 8,32 - 10,38 - 13,4 - 18,66 - 23,26 – 30 - 37,32 - 46,52 – 60 displacements slide: 16 minutes / revolution: 0,1 - 0,15 - 0,2 - 0,3 - 0,4 - 0,5 - 0,6 - 0,75 - 0,8 – 1 - 1,2 - 1,5 – 2 – 3 – 4 – 6 tilt horizontal slide: 35 degrees + 25 degrees tilt vertical slide: 30 degrees + 25 degrees displacement speed for slide: 1500 mm/minutes speed for lifting arm: 400 mm/minutes total weight of the machine: 52000 kg
