Details

Date:

19/10/2018

Brand:

TMP VORONEZH

Model:

KV 3539

Delivery terms:

can be negotiated

Condition:

Excellent

Price:

by request

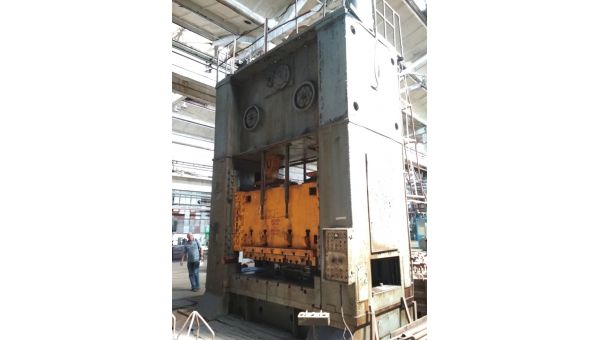

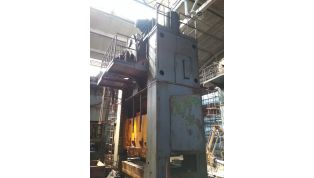

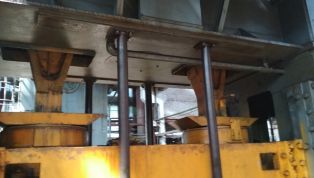

Two-point straight-sided single action Power Press

Description:

Dear Sirs

We sell

Two-point straight-sided single action Power Press

KV 3539

Year of produce 1982

Centres of pressure - 2

Maximum force of slide, T - 800

Stroke of slide, mm - 320

Adjustability of slide, mm - 320

Max. daylight between bolster and slide, SDAU, mm - 900

Bed area, mm - 2500x1600

Main motor power, kW - 85

Idle stroke rate, per min - 20

Overall dimensions - 4200x3500x8356

Height above ground, mm - 6600

Weight kg - 97 600
