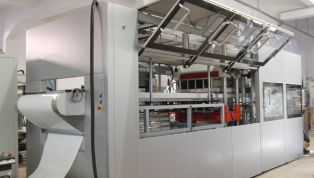

Thermoforming Machine

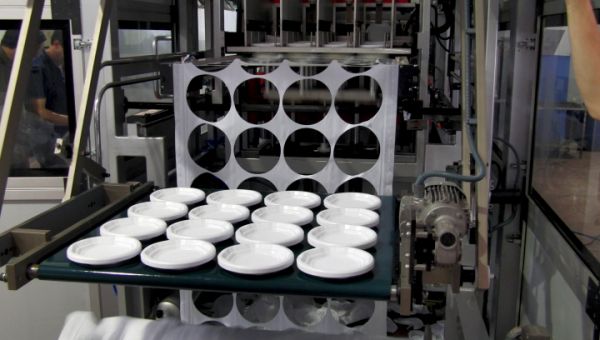

Suitable for forming Lids and Plates. Main Technical Features. Sheet width, maximum: 900 mm. Pitch, maximum: 800 mm. Mould size: 725 x 725 mm. Tool size: 725 x 725 mm. Forming Area. Maximum: 725 x 725 mm. Minimum: 400 x 200 mm. Part Height, maximum: Positive, 50 mm Negative, 50 mm Sheet thickness: 0.1-1.0 mm maximum. Spacing, maximum: 60 mm (30 mm each side) Closing Force: 50.000 daN Mould Area: 760 x 760 mm. Cutting Area: 725 x 725 mm. Net Width of sheet: 800 mm Inner Ø of core: 68-75 mm Reel Ø: 1000 mm Performance vacuum pump: 250m³/hour Dry Cycles, Servo Driven Former: 55 cycles/minute. Operation cycles: 40 cycles/minute.
