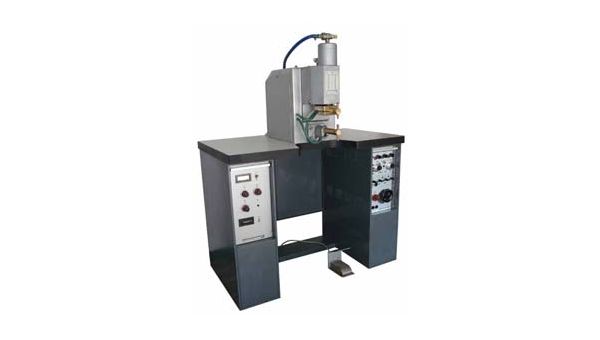

Table spot welding machine PECO Messer type FPA2

Elektrical data Power supply / valve voltage: 2 x 380 V / 50 Hz / 42 V AC / 50 Hz Connection: CEKON connector 16A-6h Fuse / Cross section of feed line: 2 x 50 A T / 4 x 6 mm2 up to 5 m length Input power Smax: 25 KVA Effective power at 50% duty ratio: 15 KVA Short-circuit power max.: 80 KVA Secondary voltage U20: 0 – 4.0 V (voltage selector switch with 11 steps) Short-circuit current secondary max.: 16 KA Weld controller: Five time-thyristor controller AC with double pulse, operation mode single spot – serial spot Mechancal data: Electrode force F: 100 – 1000 N (at 6 bar = 1000 N) Air net feeding: 6 – 10 bar, quick coupler female internal-Ø 8 mm suited for PK8 tube Armature distance max.: 100 mm (center - center) Electrode stroke max.: 40 mm (with mechanical stroke limiter) Throat depth: 180 mm (front side machine housing to center electrode) Armatures: Spot armatures with arm-Ø 28 mm, water cooled Electrodes: Cylindric electrodes Ø 10 mm, not directly cooled Start activation: Food switch Water cooling: app. 5 - 6 l/min. for transformer and armatures app. 2 - 3 l/min. for thyristor controller, which will switch the water via MV from app. 60°C at the thyristor block Water connection: Inflow/reflux for tube internal-Ø 6 + external-Ø 11.5 mm Drive configuration: pneumatic Diaphragm cylinder Dimension table L x W x H (mm): app. 560 x 1000 x 780 (height with welding head app. 1330) Weight (mass): app. 120 kg
