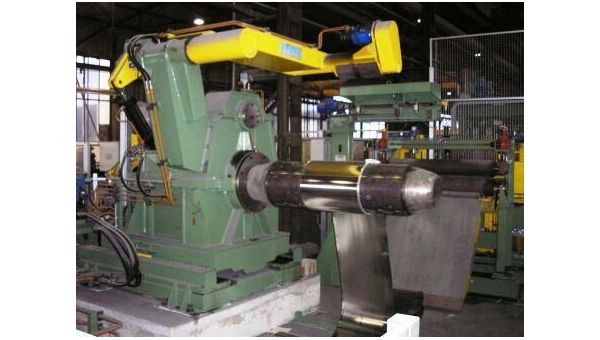

TINPLATE DECOILING LINE

Description:

BRAND FIMI, ITALY BUILT IN 2002 STRIP WIDTH MIN. 300 MM - MAX. 1200 MM SHEET LENGTH MIN. 300 MM – MAX. 1250 MM STRIP THICKNESS 0,12 – 0,60 MM COIL WEIGHT MAX. 20 TONS COIL INNER DIAMETER 400 – 508 MM TENSILE STRENGTH OF STRIPS MAX. 700 N/MM2 YIELD POINT OF STRIPS MAX. 550 N/MM2 SPEED MAX. 120 M/MIN. COMPONENTS OF THE LINE COIL LIFTING CAR SINGLE SIDED DECOILER FEEDER DRIVER SIDE TRIMMING TRIMMING SCRAP WINDER LEVELLER WITH 23 ROLLS (DIAM. 31,5 MM) AND 6 SUPPORTERS ALTERNATE INSTALLATION TRECKING DRIVER ROTRONIC DRUM SHEAR (TOLERANCE ON LENGTH +/-0,2 MM) 3 BOXES CONTI STACKING SYSTEM ROLL CONVEYOR the line is still in working condition and can be inspected any time in Germany.
