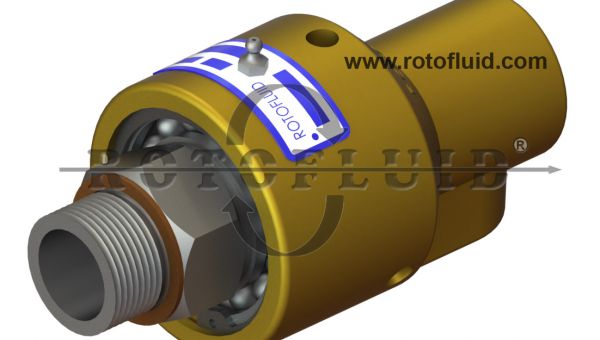

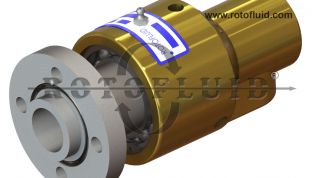

ROTOFLUID 400 SERIES ROTARY UNIONS

ROTOFLUID 400 Series general purpose rotary unions are used for water, steam, hot oil, pneumatic, etc. applications on steem mills, continuous casting machines, paper machines, textile machines, printing machines, flexible packaging machines.

MEDIUM:                               WATER, AIR, STEAM, HOT OIL, VACUUM, HYDRAULIC

SIZE:                                         1/4” (DN08) – 2” (DN50)

MAX. WATER PRESSURE:    50 BAR (750 PSI)

MAX. STEAM PRESSURE:    1 BAR (150 PSI)

MAX. HOT OIL PRESSURE:   7 BAR (100 PSI)

MAX. TEMPERATURE:          200⁰C (392 ⁰F)

MAX. SPEED:                          3,500 RPM   (3500 min‾¹)
