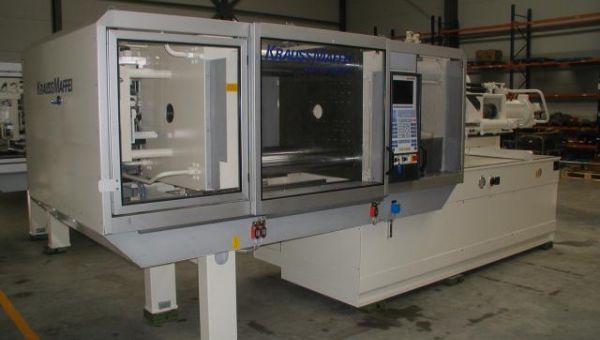

Krauss Maffei KM 175 - 1000 C2

Stock no.: 10067 Manufacturer: Krauss Maffei Type of machine: KM 175 - 1000 C2 Year: 2001 Delivery time: Immediately Terms of Delivery: Ex - Works Location: Eschweiler - Germany Controlversion: MC4 Screen text: German Operating hours: 11600 h Price: on request Technical details Clamping unit Clamping force: 1750 kN Mould opening force, max.: 101 kN Travel force movable platen Opening: 50 kN Travel force movable platen Closing: 42 kN Size of mould platens (h x v): 915 mm x 915 mm Distance between tie bars (h x v): 560 mm x 560 mm Mould opening stroke: 700 mm Mould height min.: 350 mm Max daylight: 1050 mm Hydraulic ejector - stroke: 200 mm Ejector force forward/backward: 58/28 kN Injection unit Screw diameter: 55 mm Ls/D ratio: 20 Injection pressure: 1904 bar Stroke volume: 523 ccm Shot weight, PS: 476 g Injection rate: 713 ccm/s Screw speed: 278 1/min Plasticising rate max.: 49 g/s Nozzle pressure: 110 kN Electric and Hydraulic Equipment Nominal capacity of pump motor: 37 kW Installed heating capacity: 19 kW Adjustable barrel heating zones: 5 Dry cycle number: 1300 1/h Reservoir capacity: 525 ltr. Dimensions und weights Dimensions of the machine ca.: 5,32 m x 1,90 m x 2,24 m Total machine weight: 9000 kg Max. mould weight: 2535 kg Accessories - anti vibration pads - hopper - Water battery
