Details

Date:

22/05/2018

Brand:

TMP VORONEZH, RUSSIA

Model:

K3044

Country:

Ukraine

Delivery terms:

can be negotiated

Condition:

Working (disassembled)

Price:

by request

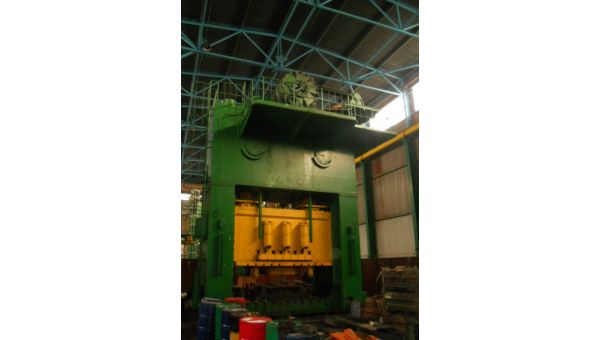

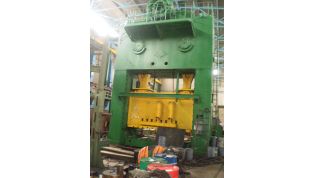

K3044 Power press two-crank, single-action, closed special.

Description:

K3044 Power press two-crank, single-action, closed special.

Intended for production of large parts from the sheet material

TMP VORONEZH, RUSSIA

Model k3044

YOP - 1981

Nominal force, kN 25000

Table size mm 3960x2000

Shut height, mm: 1500

Slider stroke, mm 600

Distance between table and slider, mm 1500

Slider stroke frequency, 1 / min: 11

Main motor power kW 200

Dimensions of the machine Length Width Height (mm) 8215x5670x9340

Weight kg 439334
