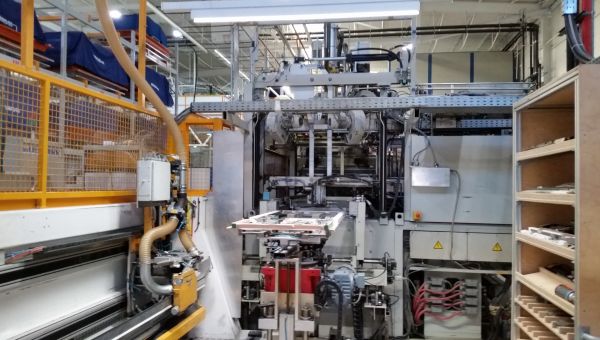

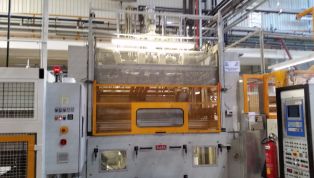

ILLIG UA 200/4g + BE 200 P with pre heating

1 vacuum former ILLIG type UA 200 g with BE 200 P

max. forming area               1950 x   950 mm

max. sheet size                    2000 x  1000 mm

max. mold height                                720 mm with double heating

year 1995, max. power consumption ca. 150 kW

- top heater ceramic elements with 5-zone regulation

- bottom heater ceramic 3-zone regulation

Pre heating unit:

- top heater ceramic elements with 5-zone regulation

- bottom heater ceramic 3-zone regulation

- parallel clamping frame hydraulic driven

- locking of reduction frames automatically by pneum. motors

- bottom table hydraulic driven

- 8 cooling fans

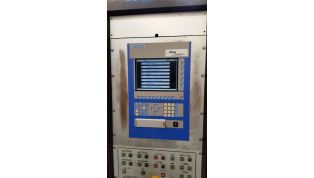

- mold vacuum regulation in 12 steps via monitor

- pre blow- and mould release regulation via monitor

- pneumatic plug assist with quick tool clamping

- front door with rolls for easy mold changing

- automatic mold changing system

- Rexroth hydraulic system for lower table and clamping frame

EXTRAS:

1. special magazine, no stop necesary for loading new sheets

2. special SIEMENS S7 control unit just for the mold identification with different tool pusher

3. Cutting unit at the end to cut automatically all 4 edges with rotating knife + Siemens S7 controller
