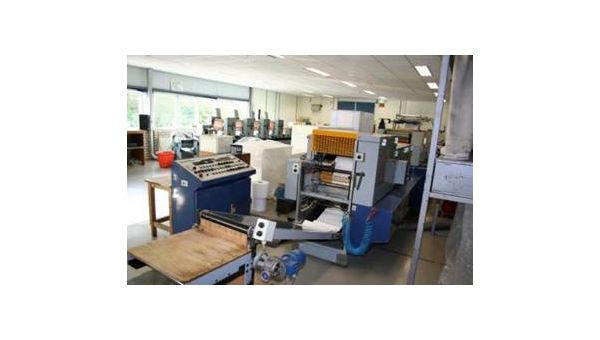

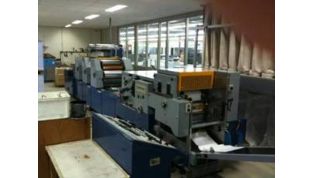

DRENT GAZELLE 6 IMR P

DRENT GAZELLE 6 IMR P Year 1993 Only 8423 h 3-colour offset press Web width 485 mm Automatic 360 circumference register on the 3 groups Unwind paper max. diameter 1270 mm Max printing speed: 250 m/min 1 x Paper unwind, max. paper unwind diameter 1270 mm.(50’’) 2 x Paper unwind shaft for core diameter o 70 mm. 1 x Web edge control unit BST 1 x Web tension control unit (Infeed) 3 x Printing tower - wet-offset variable 1 x Printing tower is reversible for printing backside. 3 x Printing inserts - wet-offset - 24”. Plate 0, 3 mm, adhesive blanket 1, 04 mm. 1 x Technotrans refrigerated dampening control unit for 3 colours. 1 x Processing unit with following features: 1 x pulling cylinder 1 x combined slitting-perforation- and web tension group 1 x set of pull + holders with pull wheels. 1 x set perforation wheel holders with perforation wheels 1 x file hole unit. 1 x 32’’ anvil cylinder. 1 x IMR sprocket punch unit, with two line sprocket punching Cross perforation cylinder 1 x 24” subdivide 4” 1 x Zig-zag folder with folding 1 x Delivery table. Plate punch and plate bander
