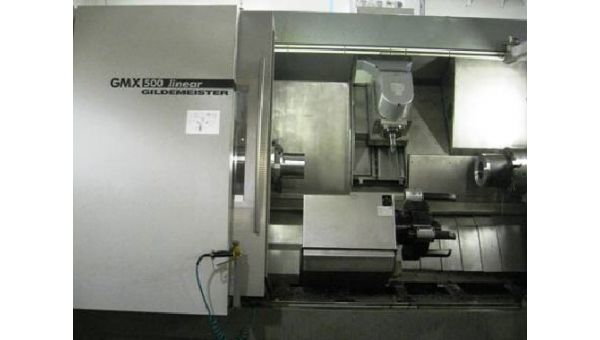

CNC-LATHE GILDEMEISTER Type GMX 500 linear

Description:

CNC-LATHE BRAND GILDEMEISTER Type GMX 500 linear YOM. 2007 TECHNICAL DETAILS CNC Control: Siemens 840D Swing: 610mm Turning Length 1870 mm Main Spindle: Chuck -Ø 400 Counter Spindle Chuck -Ø 400 Lower Turret: 12 position Speed 3200 RPM Electrics: 400V/230V (running 400V) - Milling-turning spindle with 80 position Automatic Tool Changer - Gildemeister (DMG) EC0210 Presetter - Steady Rest - Large selection of ID, OD, Rotary Tools - Tool Breakage Detector - DMG Part & Programming Software, CAD/CAM System - High-Pressure coolant system with Paper filtration - Mist Buster Quad Mist Collector - Configured for Gantry Load/off-load system - Hollow clamping device at the main spindle - Boring 100 - Clamping w/balance pressure for main & sub-spindles - Turret w/12x Capto C5 tool mounting instead of DIN-69880-40 - Additional magazine above the main spindle, 3 tool mountings max. length 315, max. 86,5 alternative: 2 tool mountings 1x max. length 590, max 86,5, 1x max. length 196, max 160, max. weight 18kgs - in process measuring device for chuck parts complete w/mounting parts - Drill fracture monitoring via swing wire, turning & milling spindle make Leukhardt, type BK Micro 4 measuring range (1,38- 66,84)/ -Additional high-pressure coolant pump, 80 bar (1160PSI), 16l (4.2272 gal), for above tool carrier - Dipping cooler 4.9KW (6.568HP) - Coolant spray gun - Tailstock function for the counter spindle mechatronic control of the supporting force, selectable per program/ - Turret steady rest SLU2. self centering 101 - 3-jaw power clamping chuck w/through-hole & jaw quick-change system BHD450 (for main & backspindle) - Set (3 pieces) of basic jaws for chuck for jaw quick-change system (400MM for Main/450MM for Backspindle) - Package increased ambient temperature consisting of cooling system for controlled cabinet (until 40degrees) & cooling system for hydraulic unit - Tool presetting unit ECO210 w/Microvision II/Werkzeugvoreinstellgeräte ECO210 Microvision II - DMG-signal lamp, 4-fold, coloured
