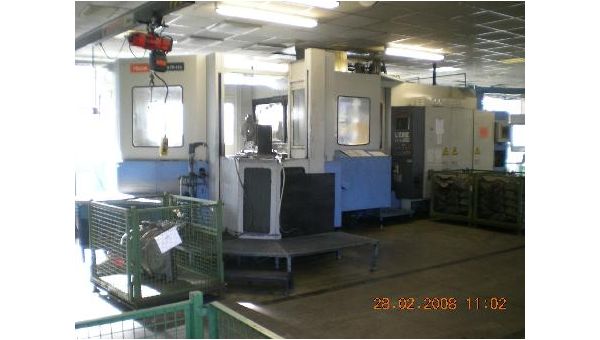

CNC Horizontal MC MAZAK FH 680 6 pallets

Description:

Technical details: x-travel 1050 mm y-travel 800 mm z-travel 825 mm control Mazatrol M-Plus numbers of pallets 6 size of pallet 630x630 mm change time of pallets 10 sec table load 1,5 t B - Axis 360x1° ° diameter max. 1050 mm table height over floor 1300 mm rapid traverse 32 m/min feed 1-32.000 mm/min turning speeds 35 - 10.000 U/min Torque max. 614 Nm power capacity - milling spindle 30/22 kW no. of tools in the magazine 40 Stьck pitch taper BT 50 max. tool diameter 135 mm max. tool-dia with free toolbox 260 mm max. tool length 500 mm max. tool weight 30 kg tool changing time 2,5 / 6,5 sec coolant tank 930 l total power requirement 75 kVA weight of the machine ca. 27 t Newin 1996
