Details
Date:
28/05/2013
Brand:
SCHUSTER
Model:
VTM 350
Country:
Germany
Delivery terms:
1-2 months
Condition:
Excellent
Price:
by request

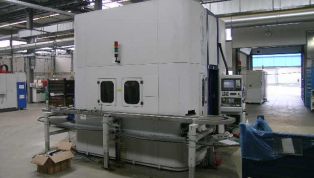

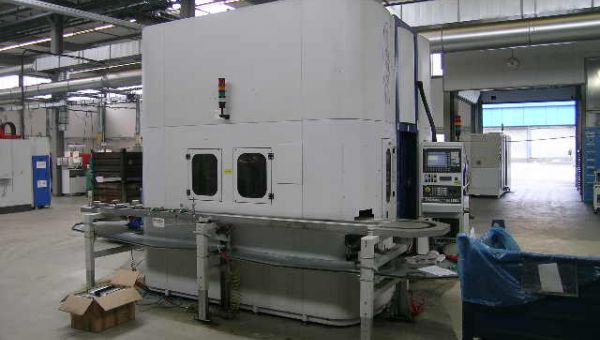

CNC 2-spindle vertical lathe SCHUSTER VTM 350 new 2005
Description:
turning diameter 250 mm swing diameter 325 mm turning height 700 mm spindle turning speed range 4500 U/min power capacity 26 kW max. torque on the spindle 275 Nm x-axis 280 mm spindle stroke 450 mm rapid travel range 30/50 m/min total power requirement 60 kW weight of the machine ca. 16 t dimensions of the machine ca. 4,5 x 3,2 x 3,4 m Accessories: * CNC SIEMENS 840 D * turret 1+2 - 12 life tools * C - axis * Autom. loading system * chip conveyor * cooling Images: Machine hours: keft/right :7653/8282 h Software : Part counter, diagnostic etc.
