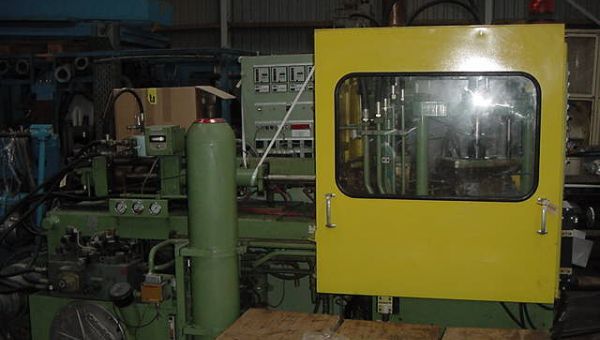

Battenfeld VK5.08B

Injection stretch blow moulder Make : Battenfeld Fischer Model : VK 5-08 IB Year : 1985 Machine number : 3606 Technical specifications: § Clamp unit: Clamp force inj. unit : 28 tonnes Clamp force blow unit : 3 tonnes Opening stroke inj. unit : 120mm Opening stroke blow unit : 120mm Dry cycle time : 3 seconds Mould size (l x w x h) : 300 x 200 x 180mm § Injection unit Diameter screw : 40mm L/D ratio screw : 16 Screw stroke : 90mm Rpm screw : 0-200 Injection pressure : 1.500 Bar Injection volume : 113cc § Connections Total : 23 kW Air : 18 m³/hr Water : 0.5 m³/hr § Power consumption Capacity : 15 kW/hr Product sizes Single : ø 100, width 100, height 165, neck ø 80mm Double : ø 70, width 70, height 135, neck ø 50mm Triple : ø 45, width 45, height 135, neck ø 30mm Quadruple : ø 30, width 30, height 135, neck ø 20mm Included with machine are 4 sets of moulds a. 2 cavity shampoo bottle b. 1 cavity baby bottle c. 1 cavity gel pot d. 6 cavity tipex bottle Our ref number : 13.0.004
