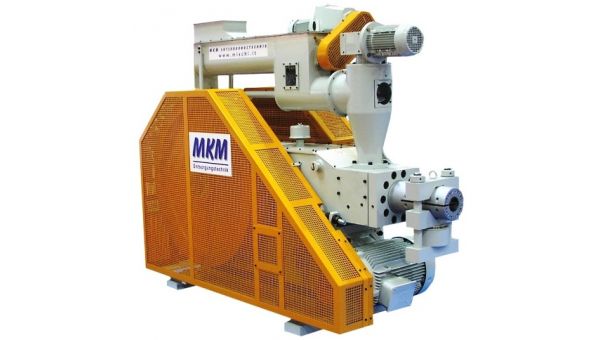

BRIQUETTING PRESSE B 50 mechanical 300 kg/h

Description:

Production capacity Kg./hour 180/300 density of the saw dust: 150/180 Kg./m3 Diameter of the briquettes mm. 50-54 Main motor power KW 15 Total power installed KW 20 Compression pressure on the piston 1800-2000 Kg./cm 2 Vertical feed screw on the compression piston operating with reduction gear KW 1,5 Oil pump KW 1 High pression oil pump for the cylinder closing the extrusion head KW 0,55 Dosimeter with feed screw operating with a variable speed unit. KW 0,75 Sensor which controls the exit of the briquettes and stops the machine automatically if the material is finished. Level sensor which control the feeding system Control panel
