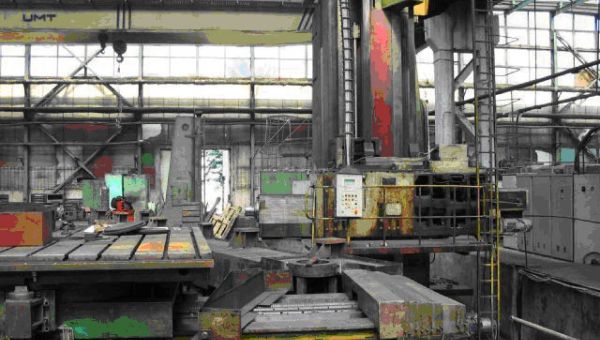

BORING AND MILLINE MACHINE TYPE AFP180CNC

BORING AND MILLINE MACHINE TYPE AFP180CNC MADE IN ROMANIA IN 1983 UNDER COLLET(GERMANY) LICENSE. THE MACHINE IS IN THE PROCESS OF RETROFITTING, RESPECTEVELY THE NUMERICAL CONTROL NEEDS TO BE COUPLED AND TO BE DONE SOME TESTES AFTER THAT. A LOT OF THE ORIGINAL COMPONENTS WERE REPLACED WITH THE FOLLOWING EQUIPMENTS: • CNC CONTROL SIEMENS SIMATEC 017 WITH 6 AXIS. • ITALIAN MAIN MOTOR AND FEED MOTORS BONFIGLIONI AND OMRON FREQUENCY CONVERTERS. • ELECTRIC CABINET IS FITTED WITH COMPONENTS FROM TELEMECANIQUE, SIEMENS AND MERLIN GERIN. • NEW GAMET BEARINGS FOR HEADSTOCK MAIN SPINDLE • NEW HEIDENHAIN ENCODERS AND RACKS • NEW VICKERS HYDRAULIC COMPONENTS AND NEW LUBRICATION INSTALLATION MACHINE IS EQUIPPED WITH: • ROTARY TABLE 2500X2500/2000, 20 TONS LOAD • FACEPLATE DIA.1200 MM • COUNTERCOLUMN (SKODA) • 4 PCS. FLOOR PLATES OF 2000X6000 MM EACH. • UNIVERSAL MILLING HEAD. MAIN FEATURES: • MAIN SPINDLE DIA: 180 MM/2000 RPM • SPINDLE TAPER: ISO 60 • RAM SIZE: 250X250 MM • TRAVELS: - X=10000 MM  Y=4000 MM  Z=900 MM  W=1500 MM • MOTORS: MAIN MOTOR POWER: 66 KW X-AXIS MOTOR: 15 KW Y,Z AXIS MOTORS: 11 KW
