Details
Date:
28/06/2013
Country:
---
Delivery terms:
can be negotiated
Condition:
Excellent
Price:
by request
Description:

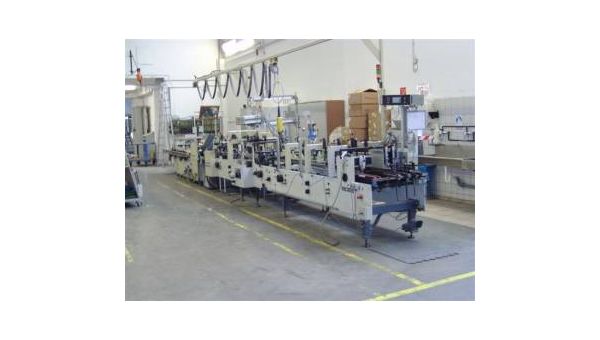

BOBST folder gluer
model: Media 68 II
age:1995
Box size range/width: min:126mm ; max:680mm
Box size range/length: min: 60mm ; max:600mm
available: after discussion
speed: 300 m/min
friction feeder
substrate types: board, corrugate, plastic
max:600g/m ; N-F-E-Flute , folded max 8mm
prefolding section: length 1.920 mm
folding section: length 2.145 mm
lock bottom modul: 1000 mm
compression section type / length:3.000 mm
delivery section length: 1.280 mm
case packing system & packing capability
wrapping system
gluing devices & positions (left or right Hand):
lower left hand unit 3mm and 5 mm Valco upper extrusion gluing device with 3 tracks
KAAS glue detection
linear ejection system
control console and remote control facilities: CUBE I at the delivery section
