Details

Date:

06/11/2015

Brand:

shengyong

Model:

C5225 C5232 C5240 C5250 C5263

Country:

China

Delivery terms:

Immediately

Condition:

New

Price:

$123,456.00

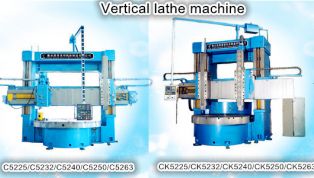

cnc vertical turret lathe VTL machine price for sale

Description:

Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd specializes in the manufactures and sells of metalworking machines: vertical turret lathe,cnc lathe machine,Single column vertical lathe , Double column vertical lathe machine ,Heavy duty horizontal lathe machine, Gantry milling machine(Plano Miller), Gantry Planer Milling Machine, Roll turning lathe, Floor type boring lathe etc.

If interested, please feel free to contact us.Best regards, Abby Shang

Technical specification of Double column vertical lathe C5232/CX5232/CK5232



Number:



Title

C5232/CX5232/CK5232



Unit

1

Max. turning diameter

3150

mm

2

Max. Height of workpiece

1600

2000

2200

2500

3000

mm

3

Max. Weight of workpiece

10

20

t

4

Table diameter

2830

mm

5

Speed range of table

2-63

r/min

6

Max.torque of table

63

KN/min

7

Vertical Travel of tool post

1000/1250

mm

8

Horizontal travel of tool post

1735

mm

9

Rotation angle of tool post

±30°

degree

10

Power of main motor

55

kw

11

Machine  weight

36-50

About (t)

Notice: This technical parameters is for reference only, The contract are based on the standard of technology agreement.
