Details

Date:

06/11/2015

Brand:

shengyong

Model:

C5112 C5116 C5118 C5120 C5123 C5125

Country:

China

Delivery terms:

Immediately

Condition:

New

Price:

$1,234,567.00

cnc vertical turning lathe VTL machine price for sale

Description:

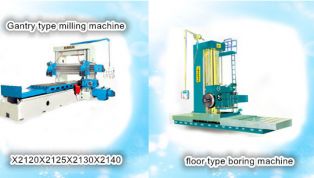

Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd specializes in the manufactures and sells of metalworking machines: vertical turret lathe,cnc lathe machine,Single column vertical lathe , Double column vertical lathe machine ,Heavy duty horizontal lathe machine, Gantry milling machine(Plano Miller), Gantry Planer Milling Machine, Roll turning lathe, Floor type boring lathe etc.

If interested, please feel free to contact us.Best regards, Abby Shang

Technical specification of  Single column vertical lathe C5112A/5116A/5118A/5120A/5123A/5125A



NO



UNIT

C5112A

C5116A

C5118A

C5120A

C5123A

C5125A

1

Table diameter

mm

1000

1400

1400

1800

2000

2300

2

Max.turning diameter

mm

1250

1600

1800

2000

2300

2500

3

Max.height of workpiece

mm

1000

1000

1000

1200

1300

1350

4

Max.weight of workpiece

t

3.2

5

5

6

8

10

5

Speed change of table

r/min

6.3-200

5-160

5-160

2.5-80

2.5-80

2.5-80

6

Step



16

16

16

16

16

16

7

Feed rates

min/min

0.8-86

0.8-86

0.8-86

0.8-86

0.8-86

0.8-86

8

Step

12

12

12

12

12

12

12

9

Horizontal travel of tool post

mm

700

915

1000

1000

1250

1600



Vertical travel oftool post

mm

650

800

800

800

915

915

10

Horizontal travel of side cutter bar

mm

600

630

630

630

650

750



Vertical travel of side cutter bar

mm

800

900

900

1000

1000

1100

11

Crossrail  travel

mm

500

650

650

700

750

850

12

Max. section scale of tool bar

mm

30×40

30×40

30×40

30×40

30×40

35×45

13

Power of main motor

kw

22

22

30

30

30

45



revolutions

r/min

1470

1470

1470

1470

1470

1470

14

Power of Feed motor

kw

1.3/1.7

1.3/1.7

1.3/1.7

1.3/1.7

1.3/1.7

1.3/1.7



Revolutions

r/min

940/1440

940/1440

940/1440

940/1440

940/1440

940/1440

15

Machine weight

t

9.5

12.5

17.5

17.5

19.5

23

16

Overall dimensions(L×W×H)

mm

2460×2380×3000

2800×2800×3800

2900×2900×3800

3100×3000×3850

3300×3280×4000

3450×3430×4100

Notice: This technical parameters is for reference only, The contract are based on the standard of technology agreement.
