Details

Date:

12/06/2017

Brand:

MG sar

Country:

United Kingdom

Delivery terms:

1-2 months

Condition:

New

Price:

€820,000.00

MG 4120 V - 3 ROLLS PLATE BENDING - 4000 x 120 mm

Description:

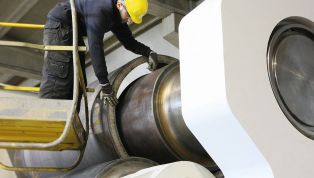

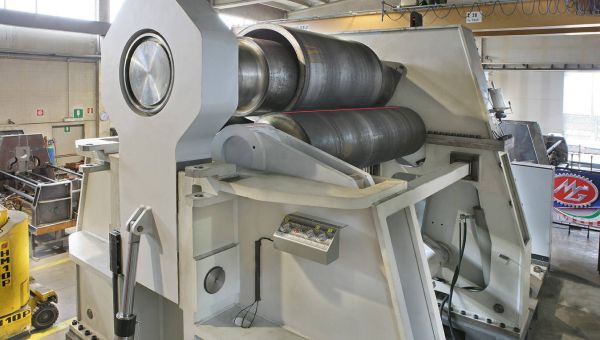

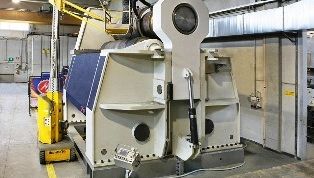

MG 4120 V - THREE ROLLS PLATE BENDING MACHINE – PLANETARY TYPE
Year 2013 – fully reconditioned – With 12 months Guarantee

Technical data:
Installed power HP. 220
Rolls Table length mm. 4,100
Rolling capacity mm 120
Pre-Bending Capacity mm 100
Top roll diameter mm. 940
Side rolls diameter mm. 800
Rolls Rotation speed -proportional mt/min 0 - 5
Width mm 4,740
Total Length mm 11,053
Height mm 5,118
Weight Kg. 180,000
Voltage/Frequency/phases 415 V – 3 - 50hz
Tilting of Side Rolls for cones Degrees max 2°
Bending Force Tons 2400
Total Torque Kg/DaN 85,000
Rolls 42CrMo 4
Hardening HRC 55-60
No. Of Driven rolls 3
Rolls Drive Hydro-motors 3
