Details

Date:

02/10/2015

Brand:

Voronezh

Model:

K04.024.844

Country:

Ukraine

Delivery terms:

Immediately

Condition:

Working (assembled)

Price:

€150,000.00

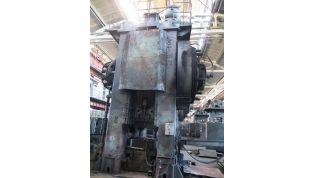

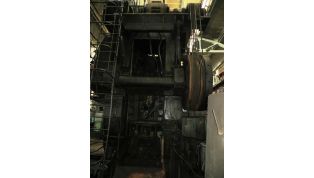

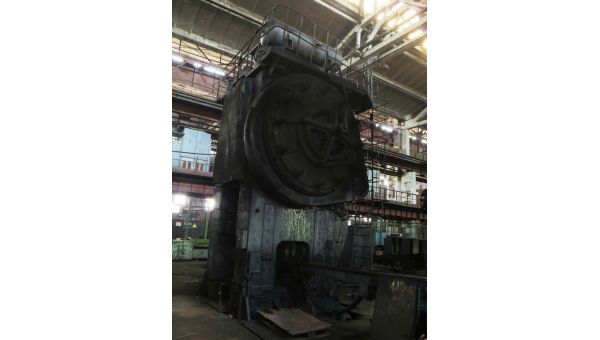

HOT STAMPING MECHANICAL PRESS 2500 t

Description:

PRESS WITH DELAY
used machine New in: 1977

RATED CAPACITY TN 2500
INTERMEDIATE SHAFT YES
CONNECTING ROD N° 1
SLIDE STROKE MM 350
CONTINUOUS STROKE PER MINUTE N° 60
SINGLE STROKE PER MINUTE N° 14
DIE SPACE MM 995
DIE SPACE ADJUSTMENT IN THE TABLE MM 10
TABLE DIMENSIONS
L TO R MM 1200
F TO B MM 1400
RAM DIMENSIONS
L TO R MM 1070
F TO B MM 1120
SUPERIOR KNOCKOUT
POWER TN 6
STROKE MM 50
PUSHERS N° 1
LOWER KNOCKOUT
POWER TN 10
STROKE MM 60
PUSHERS N° 1
DIMENSIONS SIDE WINDOWS
LEFT RIGHT MM 720
HEIGHT MM 890
MAIN MOTOR POWER KW 132
OVERALL DIMENSIONS
L TO R MM 5310
F TO B MM 4680
HEIGHT ABOVE FLOOR LEVEL MM 6440
PRESS TOTAL WEIGHT TN 199.250
